auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen
Verpackungseinheiten
| 1 ST | Menge übernehmen |
Funktionen
Verkaufsdaten
| Mindestbestellmenge | 1 ST |
| Bestellschritt | 1 ST |
Beschreibung
Schutzart IP20, Messeinsatz: 1x Pt 100 in Zweileiterschaltung, Typenzusätze: 1x Messumformer analog, Ausgang 4..20mA (in Verbindung mit 1x Pt100)

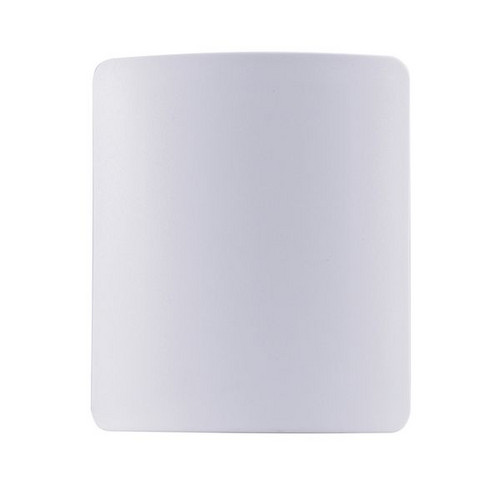

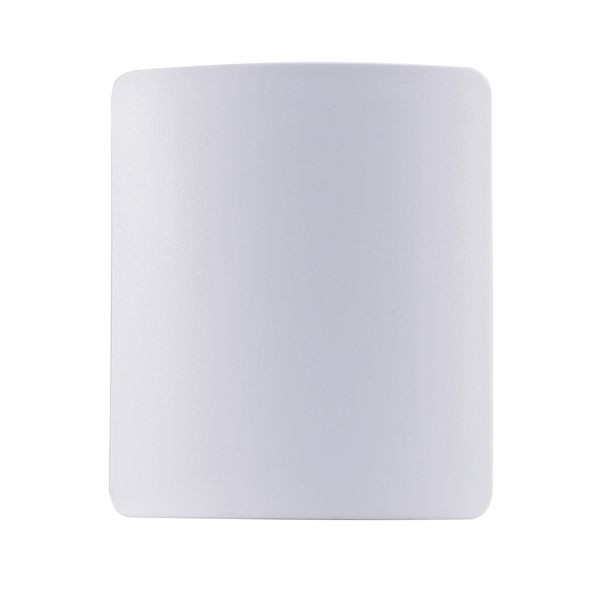

Indoor and outdoor RTD temperature probe Data sheet: 902520 Basic type: Indoor resistance thermometer, protection class IP20 Operating temperatur: 0..60°C (range only in connection with extra code 330 or 333) Measuring insert: 1x Pt100 in 2-wire circuit Tolerance class: Class B Extra code transmitt: 1x analog transmitter, output 4..20mA (in connection with 1x Pt100) Transmitter range: 0..60 Diameter prot. tube: without protection tube Diam.protection tube: Protection tube not stepped Protect. tube length: 0,0 Insertion length: 0,0 Note about connection type: For versions with two-wire circuit, the connection with three-wire or four-wire circuit is possible as of the connection terminals, if no transmitter is used.
Merkmale
| Verpackungseinheit | 1 |
| Gewicht | 0,06 |
| Gewichtseinheit | KG |
| Gewichtbezugsmenge | 1 |
| Statistische Warennummer | 90251920 |
| Ausführung | Klemme |
| Messbereich | 0 - 60 °C |
| Werkstoff | Kunststoff |
| Kurzbeschreibung | Indoor and Outdoor RTD Temperature Probe (902520) |
| eClass 11.0 - Klasse | 27200290 |
| UNSPSC 14.0801 - Klasse | 41112219 |
