JUMO 43007910 Druckmessumformer, 0 bis 1 bar

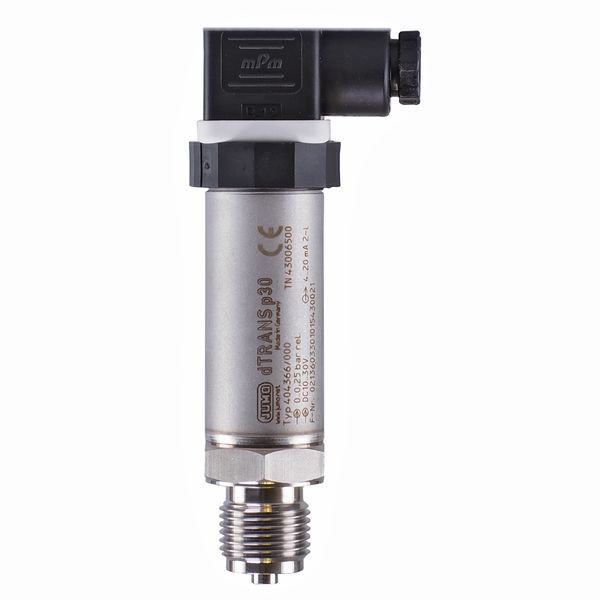

The JUMO dTRANS p30 is used for measuring the relative (gauge) and absolute pressure in liquids and gases. Customer benefits: • Process reliability: The fully-welded measuring system does not require seals and guarantees maximum process safety as well as reliability. Its core is a piezoresistive measuring cell, featuring high overload resistance and longevity. It is safe, reliable, and temperature resistant. • Versatile: A broad spectrum of measuring ranges and electrical outputs as well as a large number of process connections, also hygienic ones, guarantee variant diversity that can be specifically adapted to any application. Versions are available in a cast option and/or with reduced deviation from the characteristic line (= 0.2 % from end value). Protection types up to IP67 can be implemented with connecting cable or round plug if desired. This device has a nominal measuring range of 0...1 bar relative pressure and an 4...20 mA 3-wire output. The process connection is a G1/2 to DIN EN 837 in stainless steel. The electrical connection is via a terminal box.
