04563615
JUMO 573299 Druckmessumformer, 0 bis 4 bar ab

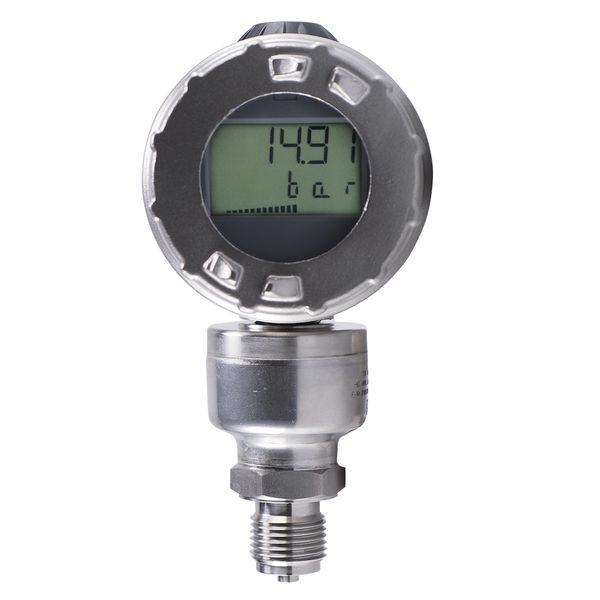

The JUMO dTRANS p20 pressure transmitter with HART® interface combines maximum precision with simple operation. It is used to measure the relative pressure and absolute pressure of gases, vapors, and liquids. The integrated LCD display shows the measured values and device data. The case and sensors are manufactured from high-grade stainless steel. Pressure separators can also be connected for particular process technology applications (see types 409772 to 409784). The transmitter is programmable. As a result it is readily adaptable to a variety of different measurement tasks. A convenient setup program is available as an accessory to enable operation via the interfaces. A rotary knob makes manual operation on site very convenient and quick.&amp,lt,br&amp,gt,For version with explosion protection Ex ia for mounting to zone 0 see order code type 403025. For version with explosion protection Ex d see type 403026. For version for differential pressure, see type 403022.&amp,lt,br&amp,gt,The device has a short housing of stainless steel. The cover is made of plastic. The electrical connection is via a round connector M12x1. The device has a nominal measuring range of 0...4 bar absolute pressure and an 4...20 mA 2-wire output with HART® protocol. The process connection is a G1/2 to DIN EN 837 in stainless steel. The measuring temperature must be less than 120°C. The measuring system is filled with silicon oil. This device has explosion protection: ATEX Ex ia and can be used in gas (ATEX II 1/2G Ex ia IIC T6...T3 Ga/Gb) and dust (ATEX II 1/2D Ex ia IIIC T105°C Da/Db).
